Machine Vision Stroboscopes
X-Strobe Fiber Optic Stroboscopes

The X-Strobe Series is an advanced machine vision illumination strobe system. It's high output, long life, small size and superior reliability combine to make the X-Series the most versatile fiber optic stroboscopes available. These products incorporate the latest innovations in Xenon flashlamp technology, Power supply engineering, trigger performance and reflector design while meeting CE requirements.

The Xenon Flashlamp produces intense pulses of radiant energy covering the ultraviolet (UV), visible (VIS) and near infrared (NIR). When coupled to a CCD/CID camera system, the strobe "freezes motion" which eliminates blur and enhances image quality. Several variations of the X-Strobe Series are available; each optimized for maximum light output at a specific flash rate. External signal inputs allow you to further customize the stroboscope to your unique application. Features
  • High intensity bright white light
  • Small overall size
  • Long Life Flash lamp
  • Improved flash stability
  • Universal AC input (100-240 VAC)
  • CE designed
  • Inputs for external trigger and intensity control
  • Easy lamp replacement

The X-Series is designed to the latest European CE directives for Safety and Emission. The universal AC power supply recognizes AC voltages from 100V to 240V with line frequencies from 50 - 60 Hz. The design of the xenon flashlamp assembly provides quick and easy lamp replacement. Various nosepieces and adapters are available for sizes up to 1" in diameter.



- Features - Specifications - Ordering Information -

Optical Specifications (1)


Model

X-1200

X-400

Maximum flash rate (2)

20 Hz (0 to 45 Hz)

60 Hz (0 to 135Hz)

Input energy per flash (3)

1.0 to 2.2 J

0.3 to 0.7 J

Light output flash duration (4)

8 to 10 µsec

2 to 10 µsec

Photometric light output          (5)

31 lumen-sec

12 lumen-sec

(6)

19 lumen-sec

8.5 lumen-sec

(7)

8.5 lumen-sec

4.2 lumen-sec

Radiometric light output          (5)

225 mJ

90 mJ

(6)

145 mJ

60 mJ

(7)

65 mJ

30 mJ

Spectral bandwidth

250 - 1100 + nm

Flashlamp life (8)

>108

> 2 x 108

Discharge Capacitance

12 µf

4 µf

Electrical Specifications

Input voltage

100 - 240 Vac (± 10 %), 50 - 60 Hz

Maximum output power

43 W

Input current (rms)

1.5 A @ 115 Vac

Flashlamp voltage (9)

400 - 600 Vdc adjustable

Remote intensity control

4 - 6 Vdc (Vref: Vlamp = 1 : 100)

External trigger input (10)

+5 V TTL pulse, 20 mA, 10-100 µsec

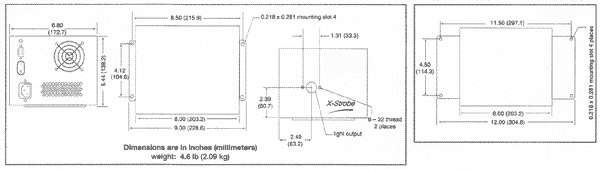

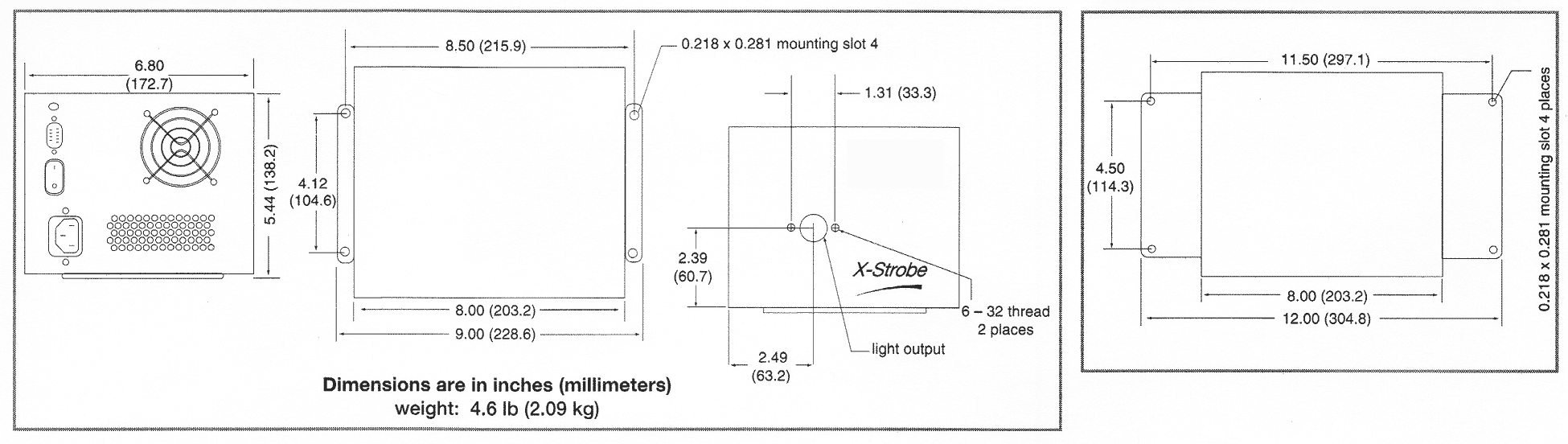

Environmental Specifications
Operating temperature

32 to +104ºF (0 to +40ºC)

Storage temperature

-40 to +194ºF (-40 to + 90ºC)

Notes:  All values are nominal; specifications subject to change without notice. .

  1. Maximum flash rate at 600 Vdc; the numbers in parenthesis represent the range of flash rates at adjusted lamp voltage (400 - 600 Vdc). Flash rate = (E = ½ CV2).
  2. Energy at 400-600 Vdc
  3. Approximate values measured at 1/3 peak of light pulse.
  4. Approximate light output at 600 VDC into 0.9" (23 mm) diameter fiber optic light guide. Numerical aperture 0.5
  5. Approximate light output at 600 VDC into 0.5" (13 mm) fiber optic light guide.
  6. Approximate light output at 600 VDC into 0.27" (7 mm) fiber optic light guide.
  7. Maintaining >50% light output.
  8. >Increasing lamp voltage will decrease lamp service life.
  9. Delay between flash command and light output is 8 µsec typical.
  10. Optional fiber optic nosepieces: Fostec 0.72" ID (MVS-23), Volpi 0.59" ID (MVS-24), or Dolan Jenner 1.0" ID (MVS-25).



- Features - Specifications - Ordering Information -

 Ordering Information
Please call 414-218.8088
to place an order

Item No.
PRICE
Model
Description
6250-X1200
$2,350.00
X-1200 Permanently Mounted Machine Strobe
High Intensity, Machine Vision Strobe for use in Fiber Optic Applications.  Xenon Lamp with 43 watts, universal power supply (100-240 Vac, 50/60 Hz), 9-Pin D-connector for external trigger.  Steel Case and internal power supply.  Flash Rate: 2700 FPM, (0-45 Hz), Photometric Light Output: 31 lumens-sec., Flash Energy: 1.0 to 2.2 joules max.
6250-X400
$490.00
X-400 Permanently Mounted Machine Strobe
High Intensity, Machine Vision Strobe for use in Fiber Optic Applications.  Same as 6250-X1200 except: Flash rate 8100 FPM (0-135 Hz), Photometric Light Output: 12 lumen-sec., Flash Energy: 0.3 to 0.7 joules.
6280-059
$490.00
MVS-9000 Lamp
Strobe Lamp Replacement for the Machine Vision X-Series Stroboscope
6280-060
$100.00
MVS-22 Nosepiece
Nosepiece for Machine Vision X-Series Strobes, fits FOSTEC 1.0" I.D. Fiber Optic Bundle
6280-061
$100.00
MVS-23 Nosepiece
Nosepiece for Machine Vision X-Series Strobes, fits FOSTEC 0.72" I.D. Fiber Optic Bundle
6280-062
$100.00
MVS-24 Nosepiece
Nosepiece for Machine Vision X-Series Strobes, fits FOSTEC 0.59" I.D. Fiber Optic Bundle
6280-139

Trigger Cable
Interface cable between Nova-Strobe and Machine Vision X-Series Strobe, TTL input to X-Series Strobe
