Portable Stroboscope
Palm Strobe x pocket-size portable stroboscope

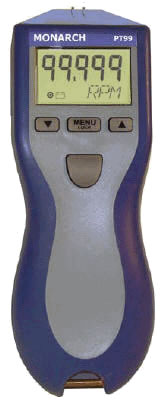

Pocket Tach PT99 Basic non-contact Optical Tachometer Pocket Tach 99 is a digital, battery-powered portable non-contact optical tachometer (red LED), which operates up to 36 inches from a reflective tape target using an LED light source. The ergonomic design allows safe, direct line-of-sight viewing of both the rotating target and the display at the same time, while providing a no-slip rubber surface for single hand operation. Pocket Tach 99 in the value-leader of the world-class Pocket Tach Series from Monarch.

Features

All Pocket Tach Series instruments provide a unique ergonomic design which allows you to safely observe both the display and the rotating target at the same time.

Specifications

Display: 5 Digits, 5 Alpha-numeric LCD
Range: 5 to99,999 RPM
Accuracy: ±0.01% or ±1 Digit
Resolution: Autoranging: 0.001 to 1.0 RPM
Fixed: 1 Digit RPM
Operating Range: 2 inches to 36 inches, ±30°
Memory: Maximum, Minimum and Last
Power: (2) "AA" 1.5 VDC batteries (20 hours) Environmental: 5° to 40°C (0° to 100°F)
80% RH up to 31°C (88°F)
Dimensions: 6.92 "H x 2.4"W x 1.6"D
Weight: 7 oz. (210 g)
Standards: IEC1010-1



Accessories Available for Nova-Strobe bax and bbx Stroboscopes

Please call 414-218.8088 to order accessories listed below.

Item No.
Description
Price
6180-047 Padded Pouch with belt loop. $25.00
6180-CAL N.I.S.T. traceable Certificate of Calibration must be ordered at the time of instrument purchase $95.00


Ordering Information

Please call 414-218.8088 to place an order

Item No. Description Price
6109-010 PT-99 Pocket Tach 99 basic non-contact optical tachometer with 12 inches of T-5 Reflective Tape $160.00
