Portable Stroboscope
Phasar-Tach Series Portable Pistol-Grip Tachometers
Phasar-Laser many models available

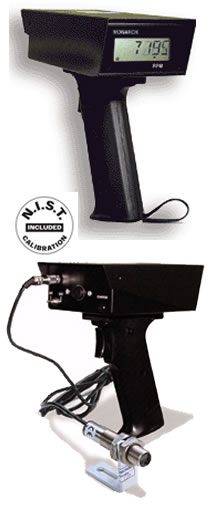

The Monarch PHASAR-TACH combines the accuracy and safety of a non-contact optical Tachometer with the convenience and ease of operation of a pistol grip instrument. Simply aim the Tachometer at a reflective target on the rotating object, squeeze the trigger, and read the RPM. The PHASAR-TACH "R" version has both internal optics and the ability to be used with a Remote Optical Sensor. Either version of the PHASAR-TACH may be handheld or mounted utilizing the 1/4" - 20 threaded bushing in the base of the handle.

Features

Phasar-Laser-R and Phasar-LCD-R Features
"R" Models provide for an optional remote sensor for difficult to reach locations and added safety.

  • Remote/Internal Switch toggles between internal light source or remote sensor
  • Integrated internal optics
  • Re-chargeable Batteries
  • Rugged Steel enclosure
  • N.I.S.T. Traceable Certificate of Calibration Available. Included with Laser Models at no additional cost.
  • Safe non-contact operation at 3 feet
  • Specifications



    Phaser Tach

    Range 5-100,000 RPM
    Accuracy ±1 RPM or 0.01% of reading
    Resolution 1 RPM
    Operating Range 10 feet for Laser Model and 36" for LCD Model
    Display 6 digit, 0.5" high Liquid Crystal Display
    Power On Switch Pistol grip trigger with latching push button
    Power* 4 "AA" (LR6) Alkaline batteries or optional NiCad batteries and AC Recharger
    Size (L x W x H) 6.13" x 3.25" x 1.75" plus 4.75" handle (156 x 83 x 44 x 121 mm)
    Weight 1.25 Lbs. (0.57 kg)
    Mounting Tripod mounting bushing in handle
    N.I.S.T. Certificate Available



    Accessories Available for Nova-Strobe bax and bbx Stroboscopes

    Please call 414-218.8088 to order accessories listed below.

    Item No.
    Model No.
    Description
    Price
    6180-057 ROS-P Remote Optical Sensor with 8 foot cable and mounting bracket Buy it now $142.00
    6180-020 IRS-P Infrared Sensor with 8 foot cable and 1/8" mono plug Buy it now $200.00
    6180-017 MT-190P Magnetic Trigger Sensor/Amplifier with 8 foot cable $210.00
    6180-028 EC-25P 25 foot Extension Cable for remote sensors with male/female 1/8" phone plug connectors $42.00
    6180-061 R-5B Recharger, 115 Vac - 50/60 Hz, with 4 "AA" NiCad batteries $48.00
    6180-063 R-6B Recharger, 230 Vac - 50/60 Hz, with 4 "AA" NiCad batteries $58.00
    6180-064 B-4 Four "AA" Rechargeable NiCad Batteries n/a
    6180-042 CC-2 Phasar Tach Kit Case $75.00
    6180-041 CC-1 Phasar Tach Padded Carrying Case Pouch $25.00
    6180-069 T-5 Reflective Tape - 5 foot roll, 0.5 inch wide (2 Pack) $26.00
    6180-079 T-5WP Reflective Tape - Waterproof, 5 foot roll, 1.0 inch wide $16.00
    6180-071 T-150 Reflective Tape - 150 foot roll, 0.5 inch wide CALL
    6180-CAL CAL-NIST N.I.S.T. Traceable Certificate of Calibration/Re-Calibration $95.00


    Ordering Information

    Please call 414-218.8088 to place an order

    Item No. Model No. Description Price
    6130-030 Phasar-Laser Pistol Grip Tachometer, liquid crystal display with visible Laser Sight - 5 to 100,000 RPM, with 4 "AA" Alkaline batteries and 12 inches of reflective tape $310.00
    6130-031 Phasar-Laser Kit 115 Phasar-Laser with 4 "AA" NiCad batteries, R-5 (115 Vac) Recharger and 5 foot roll of reflective tape in latching carrying case $445.00
    6130-032 Phasar-Laser Kit 230 /td> Same as Phasar-Laser Kit 115, but with R-6 (230 Vac) Recharger $455.00
    6130-033 Phasar-Laser Pac Phasar-Laser with 5 foot roll of reflective tape and padded carrying case $350.00
    6130-040 Phasar-Laser-R Pistol Grip Tachometer, liquid crystal display - 5 to 100,000 RPM, with connector for optional ROS-5P sensor, 4 "AA" Alkaline batteries and 12 inches of reflective tape $365.00
    6130-041 Phasar-Laser-R Kit 115 Phasar-Laser-R with 4 "AA" NiCad batteries, R-5 (115 Vac) Recharger, ROS-5P sensor and 5 foot roll of reflective tape in latching carrying case $640.00
    6130-042 Phasar-Laser-R Kit 230 Same as Phasar-Laser-R Kit 115, but with R-6 (230 Vac) Recharger $6.00
