Electrophysics offers a complete line of high performance infrared cameras covering the spectrum from 800nm to 16 microns. In addition we offer a complete line of hand held and fixed thermography cameras and software. Applications include; condition monitoring, target signature analysis, NDT, laser diagnosis, infrared pyrometry and thermal test and measurement. Our night vision systems are deployed around the world with the US Military, performing critical night vision image capture in very demanding conditions. Electrophysics is the leader in high performance low light CCD camera systems and powerful laser diode illuminators for wide area surveillance.

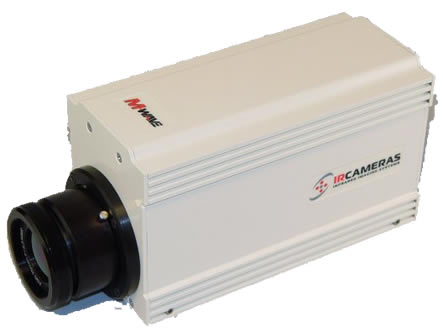

The M-Wave InSb Mid Wave IR Camera

For demanding applications, the M-Wave InSb mid wave infrared camera offers a high-performance detector with sensitivity to detect very slight temperature variances (<15º milliKelvin) and the high resolution needed to detect and view the differences (320 X 256 InSb focal plane array, 30 micron pixel size.)

The M-Wave InSb features snapshot exposure, short integration times, advanced temperature analysis, and data acquisition capabilities. Equipped with the optional CameraLink interface module, the M-Wave InSb offers both analog and simultaneous 14-bit digital output. Best of all, M-Wave offers these capabilities in an affordable camera that is thousands of dollars less than comparable infrared cameras with similar capabilities. Contact James L. Griffin Company today to learn more about M-Wave’s high performance capabilities.

Export of this product from the United States is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulation, Parts 120-130
